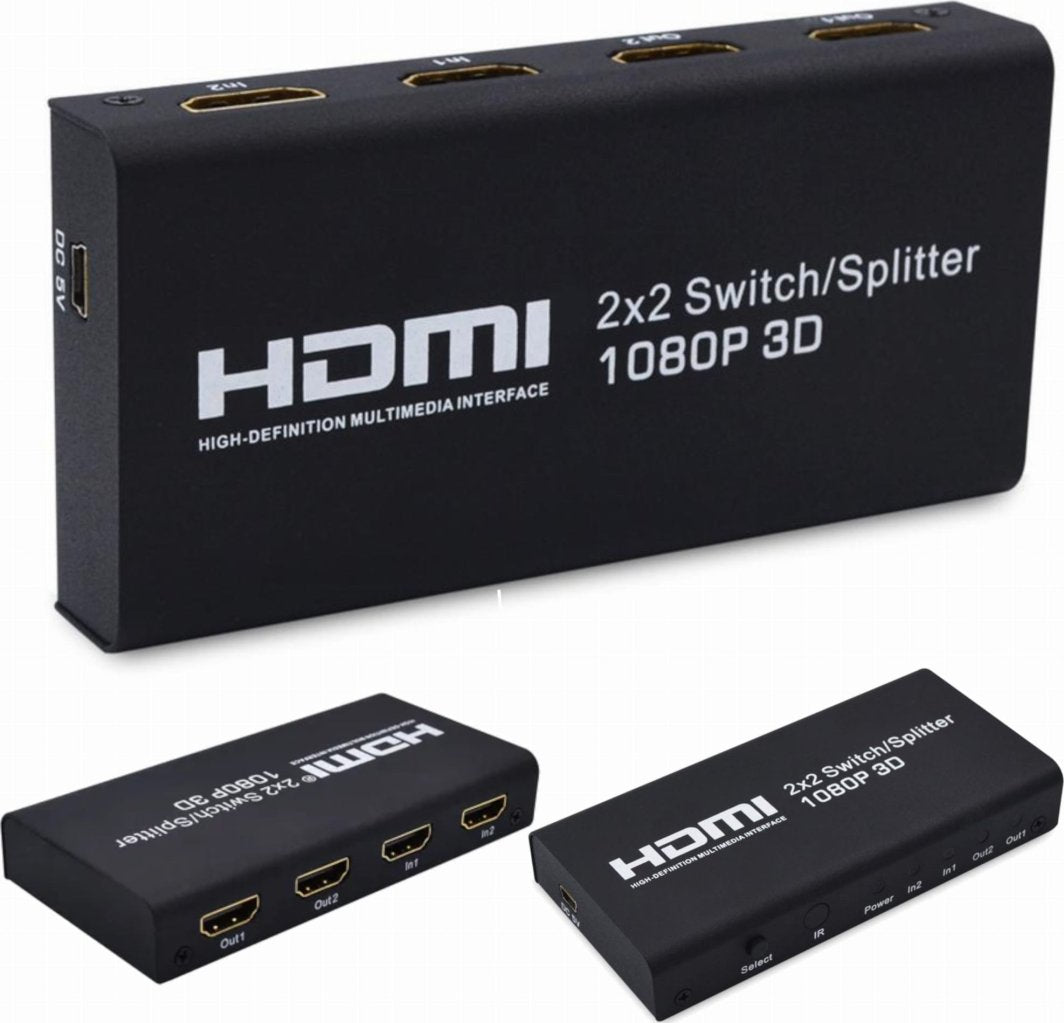

2×2 HDMI Switch Splitter Matrix – 2 Inputs 2 Outputs | 1080P Full HD & 3D

Product Description

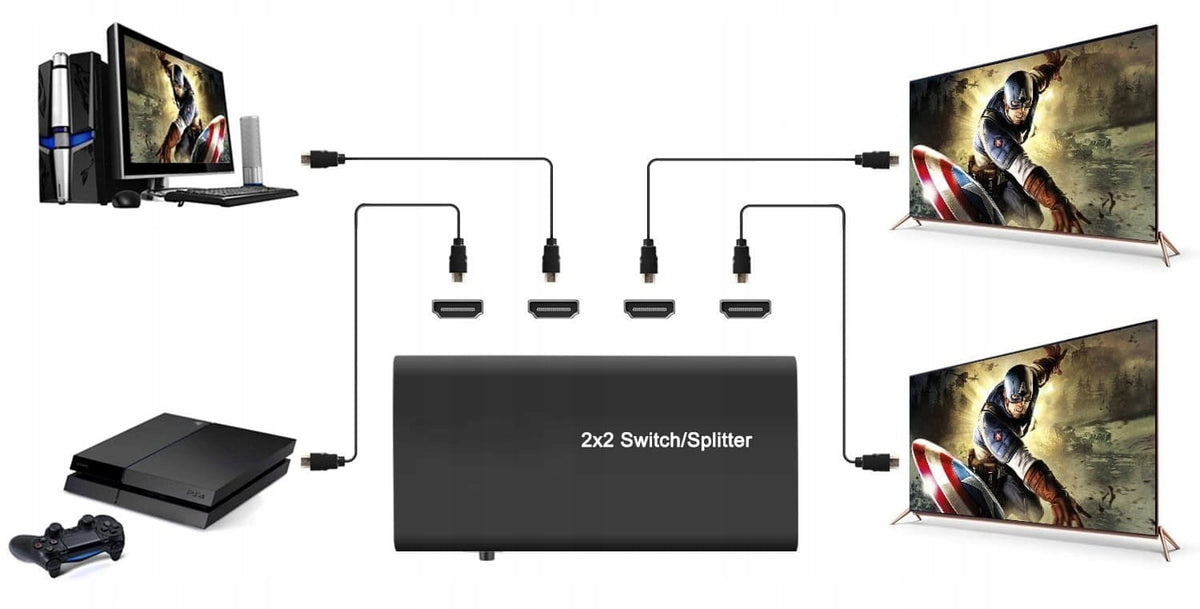

Upgrade your home entertainment, gaming, or office setup with this 2×2 HDMI Switch Splitter Matrix. It allows you to connect 2 HDMI signal sources to 2 HDMI displays and switch between connected sources easily using the front-panel buttons or included IR remote control.

Perfect for PS3, PS4, Xbox, DVD players, laptops, PCs, set-top boxes, AV receivers, TVs, monitors and projectors.

The HDMI matrix can be used for both switching and splitting HDMI signals, allowing the connected displays to receive the selected HDMI source. It also helps amplify HDMI signals for longer cable runs.

Key Features

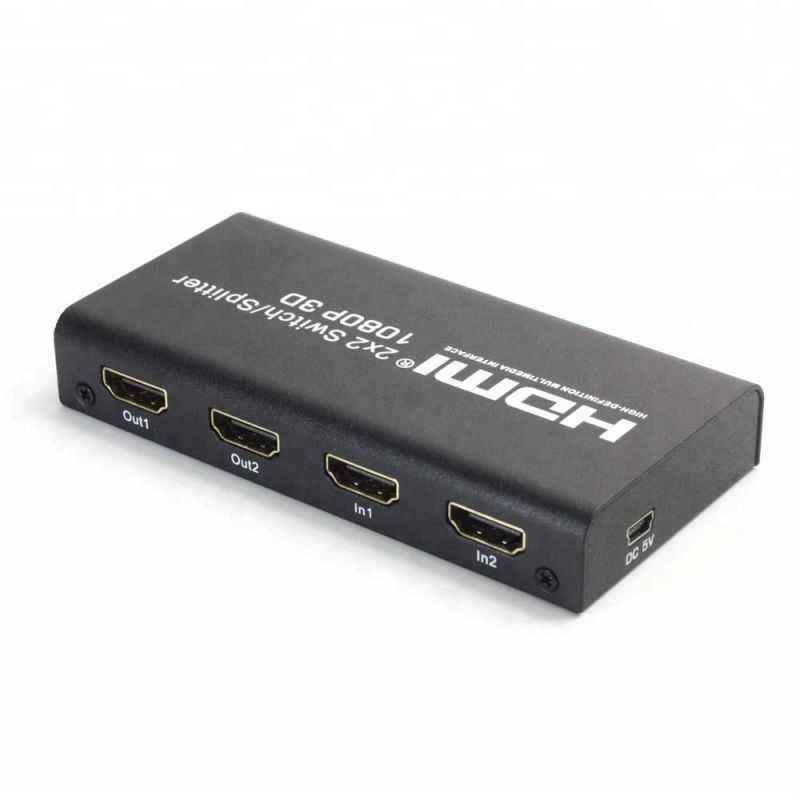

• 2 HDMI Inputs + 2 HDMI Outputs

• Switch between 2 HDMI source devices

• Supports HDMI signal distribution to 2 displays

• Full HD 1920×1080P @ 60Hz

• Supports 3D video

• HDMI 1.3b compatible

• 2.25Gbps data transmission rate

• TMDS clock up to 225MHz

• Supports 8-bit, 10-bit and 12-bit Deep Color

• Digital video and audio transmission with no noticeable delay

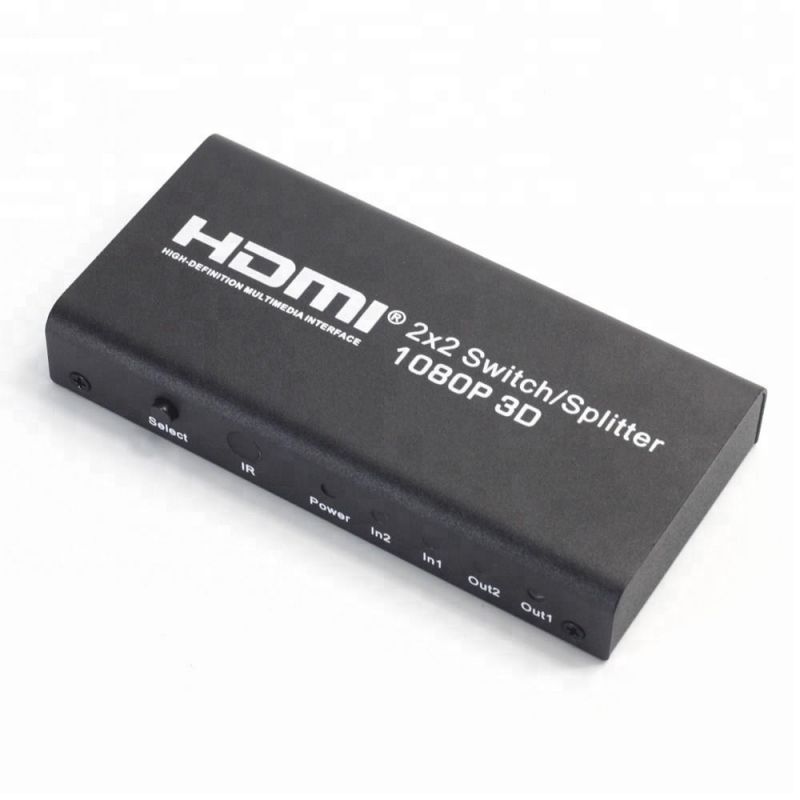

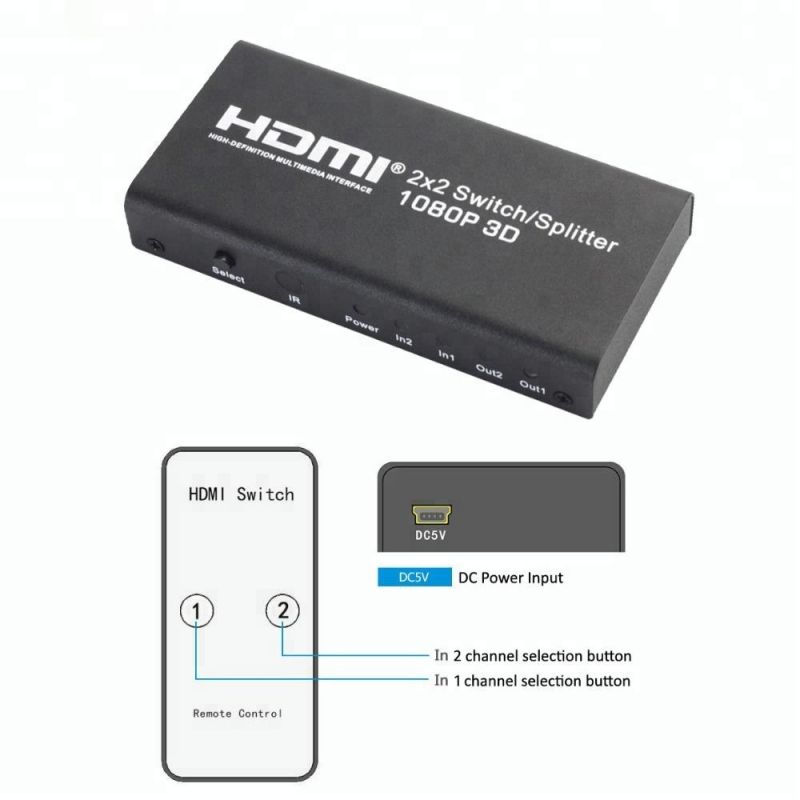

• Easy switching through buttons or IR remote control

• LED indicators show the active operating status

• Compact, lightweight and easy to install

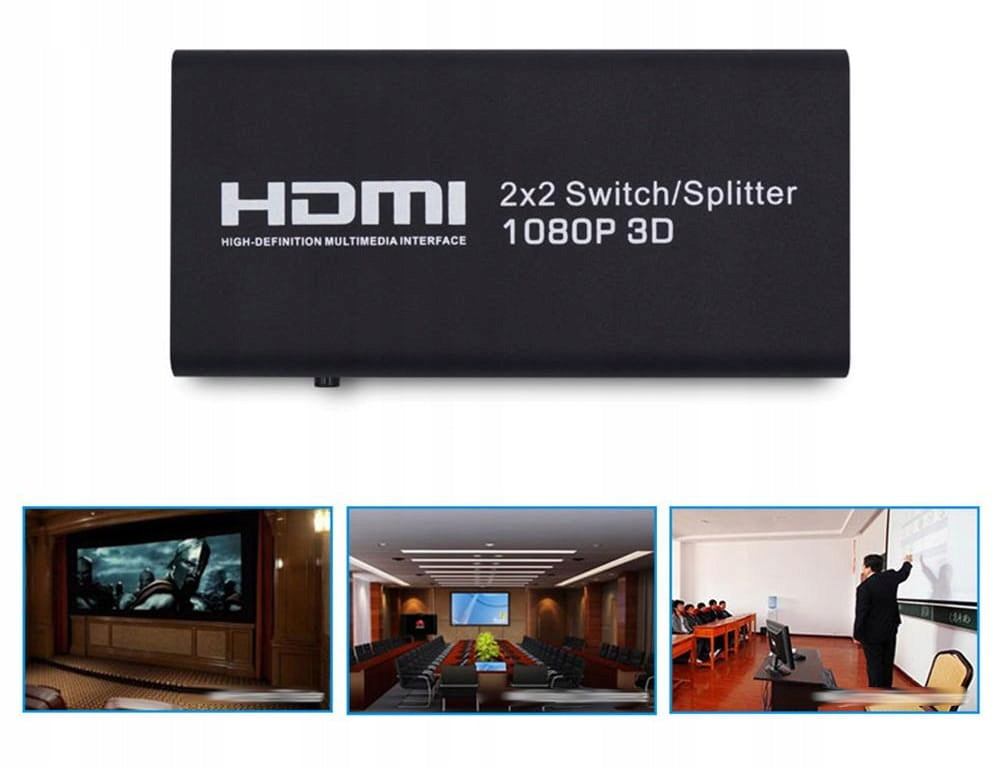

• Suitable for home, office, gaming and entertainment systems

Compatible Devices

Works with a wide range of HDMI devices, including:

• PS3 / PS4

• Xbox gaming consoles

• DVD players

• Laptops and PCs

• Set-top boxes

• AV receivers

• HDTVs

• Monitors

• Projectors

• Other HDMI-compatible devices

Supported Video

• Maximum Resolution: 1920 × 1080P @ 60Hz

• 3D Video Support

• HDMI 1.3b

• 8/10/12-bit Deep Color

• HDMI Bandwidth: 225MHz

• Data Rate: 2.25Gbps

Important: For 3D playback, all devices and displays connected through the HDMI outputs must support the required 3D format.

Supported Audio Formats

Supports:

• DTS-HD

• Dolby TrueHD

• DTS

• Dolby AC-3

• DSD

• LPCM 5.1CH

Cable Distance

When using standard AWG26 HDMI cables:

• Input distance: up to 10 meters

• Output distance: up to 10 meters

Longer distances may depend on cable quality, source device and display compatibility.

Specifications

• Product Type: 2×2 HDMI Switcher / Splitter Matrix

• Input Ports: 2 × HDMI

• Output Ports: 2 × HDMI

• HDMI Version: 1.3b

• Maximum Resolution: 1920×1080P @ 60Hz

• HDMI Bandwidth: 225MHz

• Transmission Rate: 2.25Gbps

• Video Color: 8/10/12-bit Deep Color

• Power Supply: DC 5V–12V

• Material: Metal

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 60°C

• Operating Humidity: 10–90% RH, non-condensing

• Storage Humidity: 5–95% RH, non-condensing

• ESD Protection: Up to ±8kV air-gap discharge

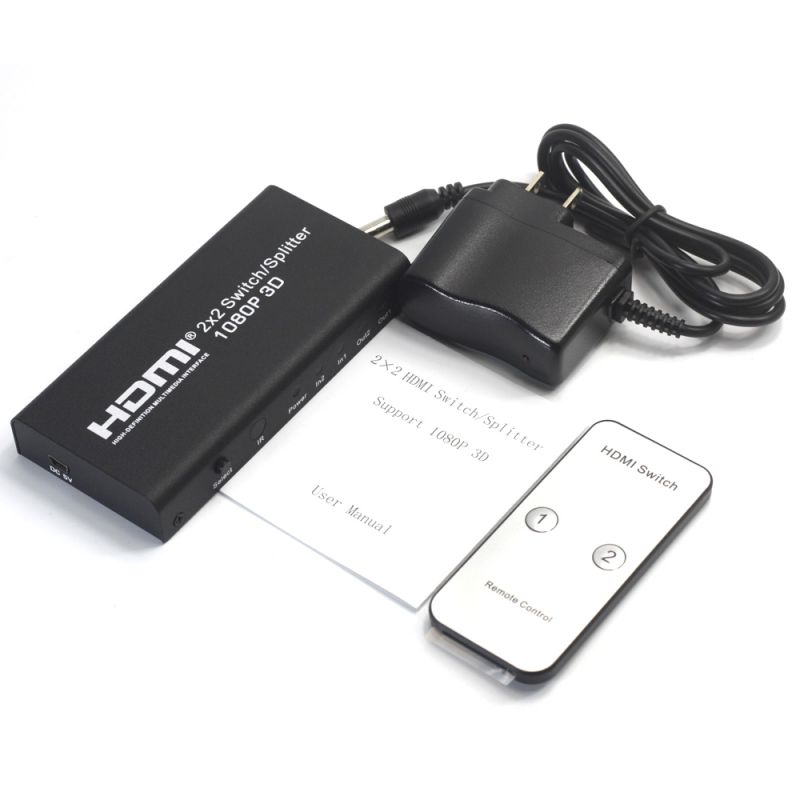

Package Contents

• 1 × 2×2 HDMI Switch Splitter Matrix

• 1 × Power Adapter

• 1 × IR Remote Control

• 1 × User Manual
