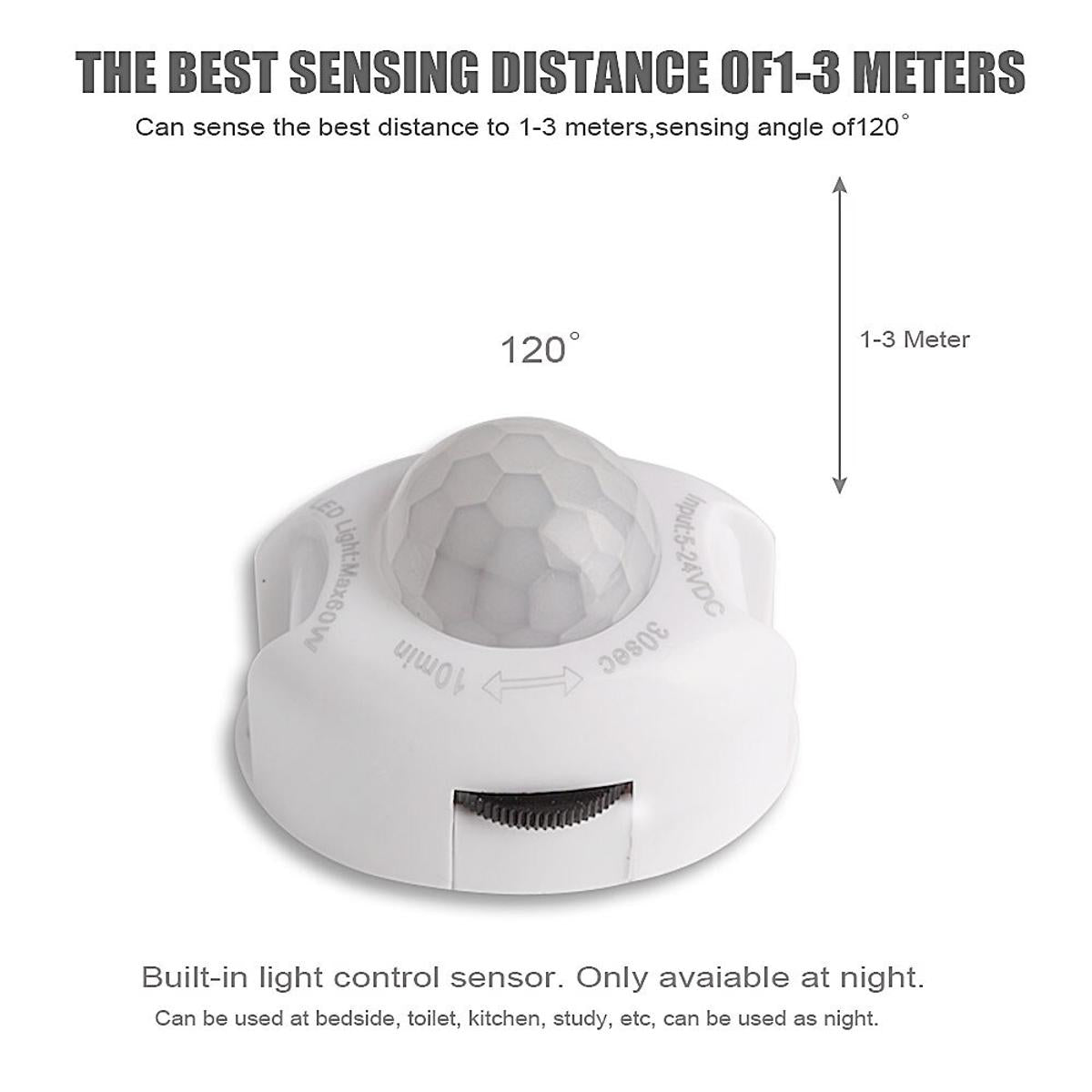

A Human Body Infrared PIR Motion Sensor Switch is designed to automatically turn LED strip lights on and off based on motion detection. Here are the specs for a typical DC 5V-24V 60W PIR motion sensor switch:
General Specifications
- Operating Voltage: DC 5V - 24V
- Max Power Output: 60W
- Detection Type: Passive Infrared (PIR) Sensor
- Detection Distance: 3 - 5 meters (~9.8 - 16.4 feet)
- Detection Angle: 120° - 140°
- Delay Time (Timer Setting): Adjustable, typically 1 - 10 minutes (varies by model)
- Standby Power Consumption: < 0.5W
- Output Type: MOS tube output (low voltage DC control)
- Working Temperature: -20°C to 60°C
- Size: Varies by model, typically ~45mm x 15mm x 10mm
-
Wiring:
- Input: DC 5V-24V
- Output: Same as input voltage (controls LED strip directly)
- Connector Type: Barrel DC jack (5.5mm x 2.1mm) or wire terminals
