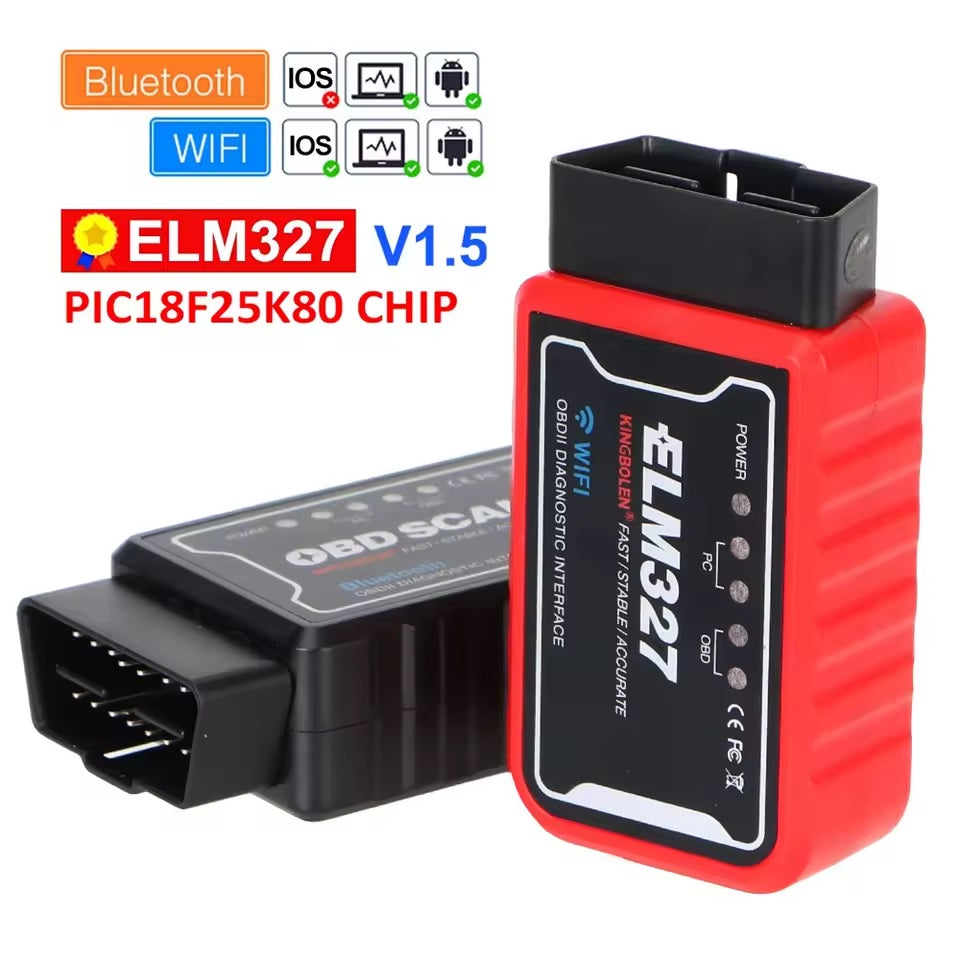

گاڑی ٹیسٹر elm327v1.5pic25k80 چپ بلوٹوتھ ورژن obd2 اینڈرائڈ سسٹم

Main Functions:

• With proper software installed in the host device, you may have following parameters read out from your vehicle:
• Vehicle Speed
• RPM
• Fuel Consumption
• Engine Coolant Temp
• Fuel Pressure
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure
• Air Intake Temp
• Timing Advance
• Mass Air Flow
• Fuel Level
• Barometric Pressure
• EVAP System Vapor Pressure
• Fuel Trim
• ...

Note:

• Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Support Protocols:

• 1.SAE J1850 PWM(41.6Kbaud)
• 2.SAE J1850 VPW(10.4Kbaud)
• 3.ISO9141-2(5 baud init,10.4Kbaud)
• 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
• 5.ISO14230-4 KWP(fast init,10.4 Kbaud)
• 6.ISO15765-4 CAN(11bit ID,500 Kbaud)
• 7.ISO15765-4 CAN(29bit ID,500 Kbaud)
• 8.ISO15765-4 CAN(11bit ID,250 Kbaud)
• 9.ISO15765-4 CAN(29bit ID,250 Kbaud)
• A.SAE J1939 CAN(29bit ID,250*Kbaud)
• B.USER1 CAN(11*bit ID,125*Kbaud)
• C.USER2 CAN(11*bit ID,50*kbaud)
• *default settings(user adjustable)

Supported cars:

• If your vehicle does not fall into any of the above categories, look under the hood and try to locate a label that explicitly states that the vehicle was designed to comply with OBD-2 legislation.
• This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine:
• For USA Car brand,after 1996;
• For Europe Car brand(petrol),after 2001;
• For Europe Car brand(diesel),after 2004;
• For Japan Car brand,after 2002;
• For Korea Car brand,after 2010;
• For Chinese Car brand,after 2009;
• For Car brand,after 2010;
• For Russian Car brand,after 2012;

Hardware requirements:

• for Android/for IOS devices(iphone,ipad e.g.)//for PC
• Bluetooth elm327 supports android system only, does not support IOS system, so if you have a iphone, please buy wifi ELM327.
• Wifi elm327 supports both android and IOS system.

Software Requirements:

• All ELM327 based software.
• IOS system software in Apple store: Car Scanner / OBD Auto Doctor / OBD Car Doctor / EOBD Faciles / Rev / FUZZYCar/ DashComand / SpeedPORT / Nova Scan ...
• Attention:For iOS base software are not included you must buy from Apple App Store!
• Android system software：Torque pro / Mini OBD2 / OBD Car Doctor / DashComand ...
• Windows system: Scanmaster- ELM / PCMSCAN...

Technical Specifications:

• SSID: WiFiOBD
• IP: 192.168.0.10
• Subnet: 255.255.255.0
• Port: 35000
• Range: 50 ft (Line of sight)
• Antenna: Internal
• Power Consumption: 0.75 Watts
• Wifi Standard: 802.11a/b/g
• Operating Temperature: -15 to 100 Deg Celsius

Note:

• There are several options in the link, please choose the right device, according to your phone android or IOS.
• Bluetooth elm327 supports android system only, does not support IOS system, so if you have a iphone, please buy wifi ELM327.
• Wifi elm327 supports both android and IOS system.

Packaging includes:

• 1 x OBDII Diagnostic Tool
