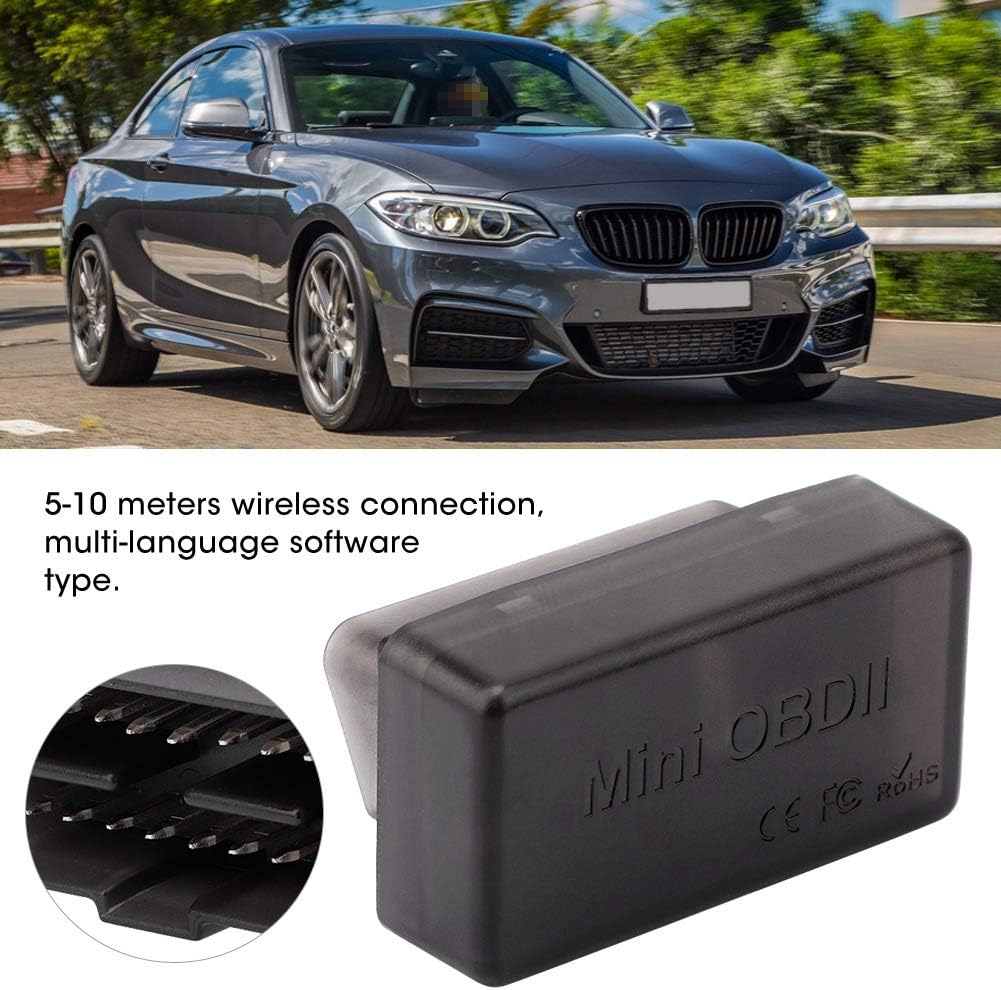

Car Scanner OBD2 OBDII Car Diagnostic Tool Automotive Bluetooth Code Reader work with Apple/android

• ITEM DESCRIPTION
  • Bluetooth 4.0 OBD II Diagnostic Scanner
  • Chipset: ARM
  • Firmware: V1.5
  • Bluetooth 4.0
  • Colour: Black
  • Unit Size: 49*25*23mm
  • Compatible Devices: Android/Windows/iOS
• Bluetooth 4.0 OBD II Diagnostic Scanner
  • Allows this scanner to connect to Apple iOS devices
• ARM Chipset
  • Same chipset used on expensive brands
  • Advanced RISC Machines optimises performance and low power consumption
• V1.5 firmware
  • It supports all 9 OBD2 protocols
• Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
  • Connect to your iOS or Android devices using one of the many free compatible apps or a Bluetooth® enabled computer
• View real-time vehicle data, graphs and performance parameters while you're driving
• Compatible* with most OBDII compliant vehicles
  • Contains QR code to download the recommended Mini OBDII app for android
• Pays for itself with one use
• Multi-Protocol Support:
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2 (5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4Kbaud)
  • ISO14230-4 (fast init, 10.4Kbaud)
  • ISO15765-CAN (11bit ID, 500Kbaud)
  • ISO15765-CAN (29bit ID, 500Kbaud)
  • ISO15765-CAN (11bit ID, 250Kbaud)
  • ISO15765-CAN (29bit ID, 250Kbaud)
• Compatible software:
  • Android: Torque, OBD Car Doctor, DashCommand, Car Scanner ELM OBD2
  • iOS: Car Scanner ELM OBD2, Dashcmd, OBD Car Doctor
  • Windows: ScanMaster-ELM
• What operation you can Perform on this Scanner?
  • Read diagnostic trouble codes, both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database).
  • Clear trouble codes and turn off the MIL or malfunction indicator lamp ("Check Engine light")
  • Display current sensor data, including:
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages/associated short term fuel trims
  • Fuel System status
  • Fuel Pressure AND Many others...
• User-friendly and Easy to learn
  • Basically extract the files into a folder on your computer's hard drive and you are ready to go. To uninstall the program, just delete the entire contents of the folder where the program is.
  •

Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 1Phone Android OBD2 App like Torque, OBD Car Doctor, DashCommand, Auto Doctor for Android and Auto Doctor, Dashcmd, OBD Car Doctor for iOS. ScanMaster-ELM for Windows
