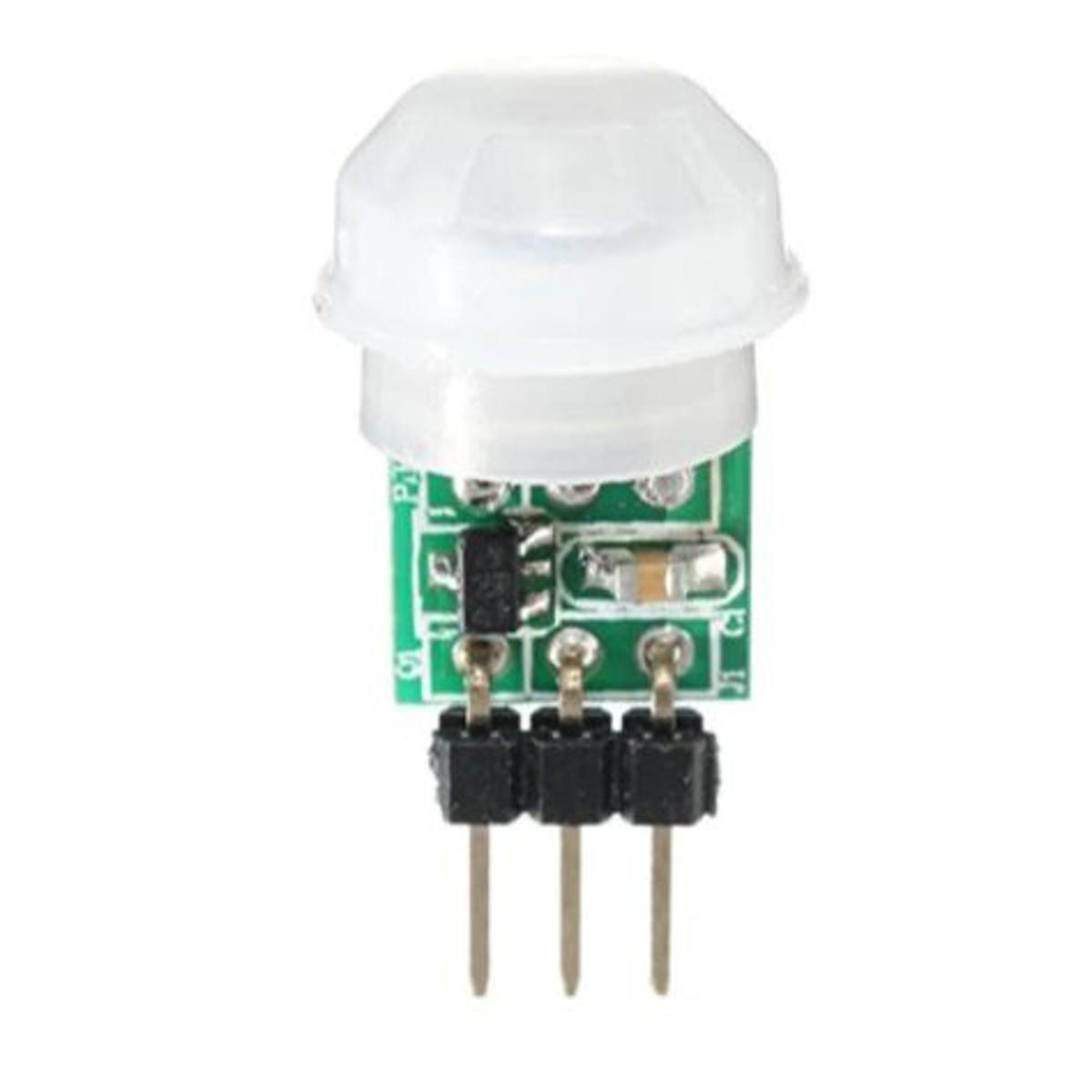

- AM312 body sensor modules: a digital-based passive body
- Intelligent infrared technology, automatic control products. High sensitivity,
- High reliability. Widely used in various electrical equipment with automatic detection.
- 1. Operating voltage: dc 2.7-12V;
2. Static energy consumption: <0.1 ma;
3. Delay time: 2 seconds;
4. Blocking time: 2 seconds;
5. Trigger: can be repeated;
6. Detection range: cone angle ≤ 100 degrees, 3-5 m; (required according to the objective)
7. Operating temperature:-20-60 degrees
8. PCB dimensions: 10mm x 8mm
9. Total size: approx. 12mm x 25mm
10. Module lens: small lens
