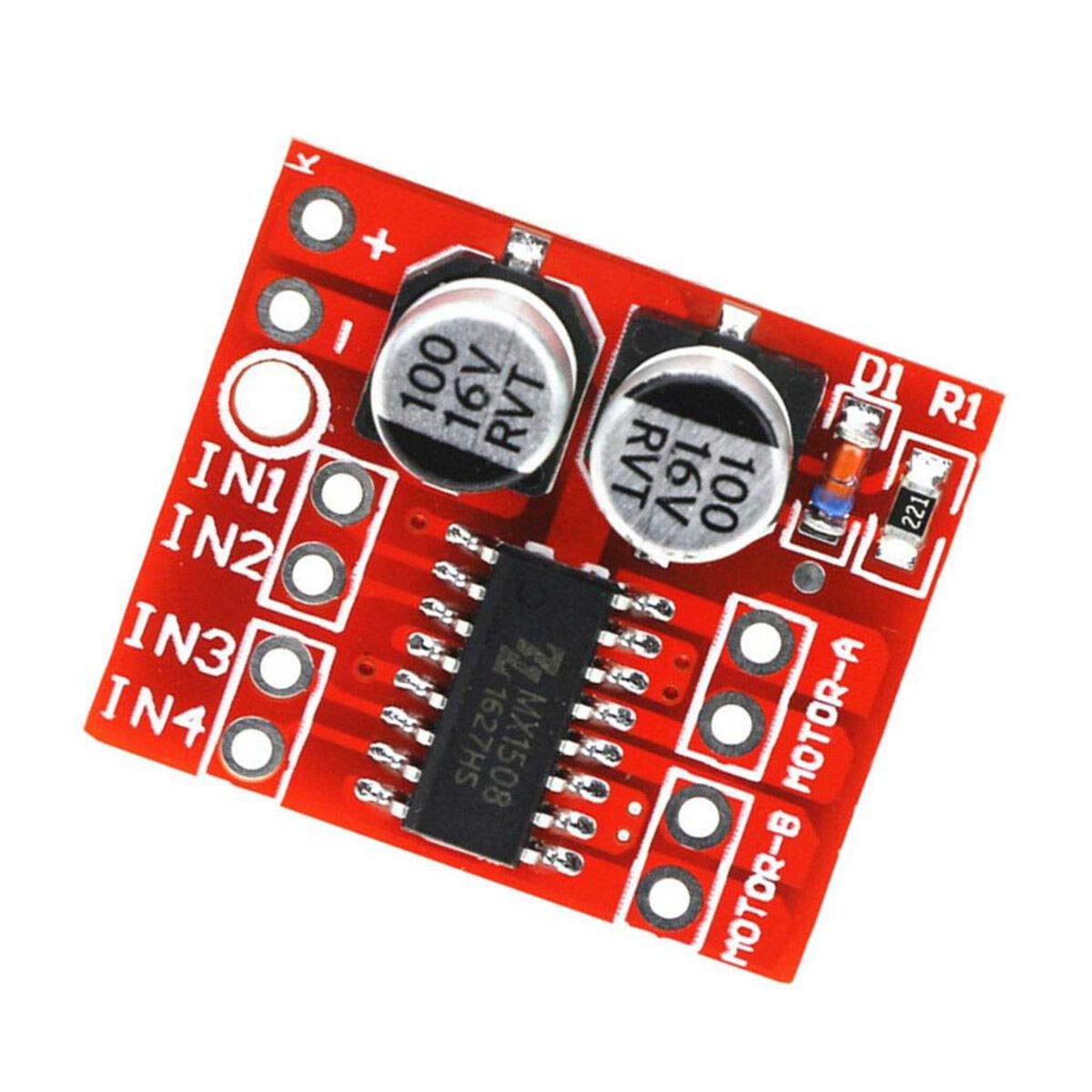

Dual H-bridge motor drive, you can drive two DC motors or a four-wire two-phase stepper motor;
Module supply voltage 2V-10V;
Signal input voltage 1.8-7V;
Single - channel operating current of 1.5A, the peak current up to 2.5A, low standby current (less than 0.1uA);
Built-in anti-co-state conduction circuit, the input is vacant, the motor will not malfunction;
Built-in thermal protection circuit with hysteresis (TSD), no need to worry about the motor stall;
Product size: 24.7 * 21 * 5mm (LWH), ultra-small size, suitable for assembly and automotive;
Mounting hole diameter: 2 mm.
INx connected to the microcontroller IO or other signal source, MOTOR-A and MOTOR-
