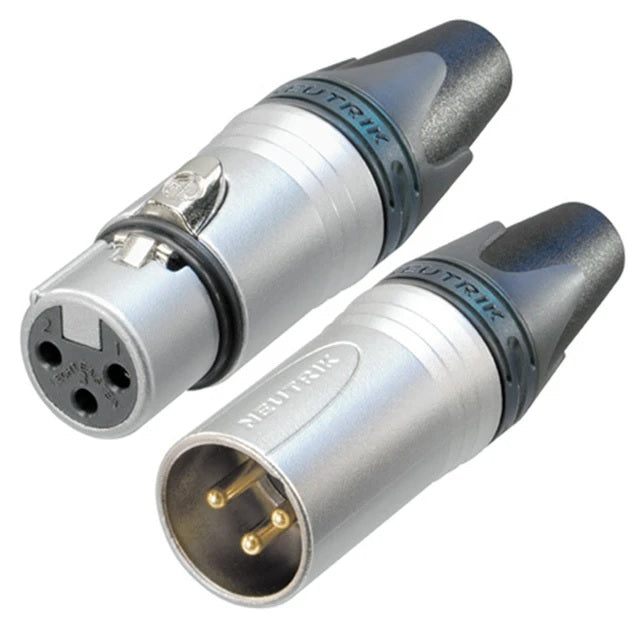

NC3FXX-HE/NC3MXX-HE
▲3 pole female cable connector, velour-chromium housing and machined gold contacts. ▲Exclusive version of standard XX Series. Valuable velour chromium plating. Extra high temperature resistant insulator material.
Features & Benefits
▲Extra high temperature resistant insulator material ▲Machined female contacts ▲Valuable velour chromium plating of shell ▲Female connector with improved solid metal latch which is larger and easier to handle ▲Additional ground spring contacts for better shell ground continuity ▲Flammability UL94V-0 ▲Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster ▲Boot with polyurethane gland gives high protection to cable bending stresses ▲Colored rings and boots available for coding or identification ▲Sleek and ergonomic design - valuable and handy ▲Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title：NC3FXX-HE Connection Type：XLR Gender：female/male
Electrical
Capacitance between contacts ：≤ 4 pF Contact resistance：≤ 3 mΩ Dielectric strength：1,5 kVdc Insulation resistance ：> 10 GΩ (initial) Rated current per contact：16 A Rated voltage：< 50 V
Mechanical
Cable O.D.：3.5 - 8.0 mm Insertion force：≤ 20 N Withdrawal force：≤ 20 N Lifetime：> 1000 mating cycles Wiresize：max. 2.5 mm⊃2; Wiresize：max. 14 AWG Wiring：Solder contacts Locking device：Latch lock
Material
Boot：Polyurethan Contact plating：0.2 µm Au hard alloy over 2 µm Ni Contacts：Brass (CuZn35Pb2) Insert：Polyphenylene Sulfide (PPS 40% GR) Locking element：Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell：Zinc diecast (ZnAl4Cu1) Shell plating：Velour Chromium Strain relief：Polyacetal (POM)
Environmental
Flammability：UL 94 V-0 Standard compliance：IEC 61076-2-103 Protection class：IP 40 Solderability：Complies with IEC 68-2-20 Temperature range：-30 °C to +80 °C
