Specifications:1. Input voltage:AC85~265V 50/60HZ or DC100v-370v2. Output voltage:DC12V (±0.1V)3. Output current:400mA4. Power:5W5. PCB size:3*2*1.8cmUse environment:1. Working temperature: -20 to 60Centigrade2. Relative humidity: 40 to 90% RHInput characteristics1. Input voltage range: 85VAC-265VAC / 100VDC-370VDC2. Input Current: 0.0273 (AC110V) 0.014 (AC220V)3. Input surge current: 20A (full load)Output Characteristics1. Output voltage range: 11.80~12.1V2. Output Current Range: 0A to 400mA, the peak current of 450mA3. Output power: 5W.4. Output efficiency: 80%5. Switching Overshoot: 10%6. Output Rise Time: 100ms7. Ripple:150mV

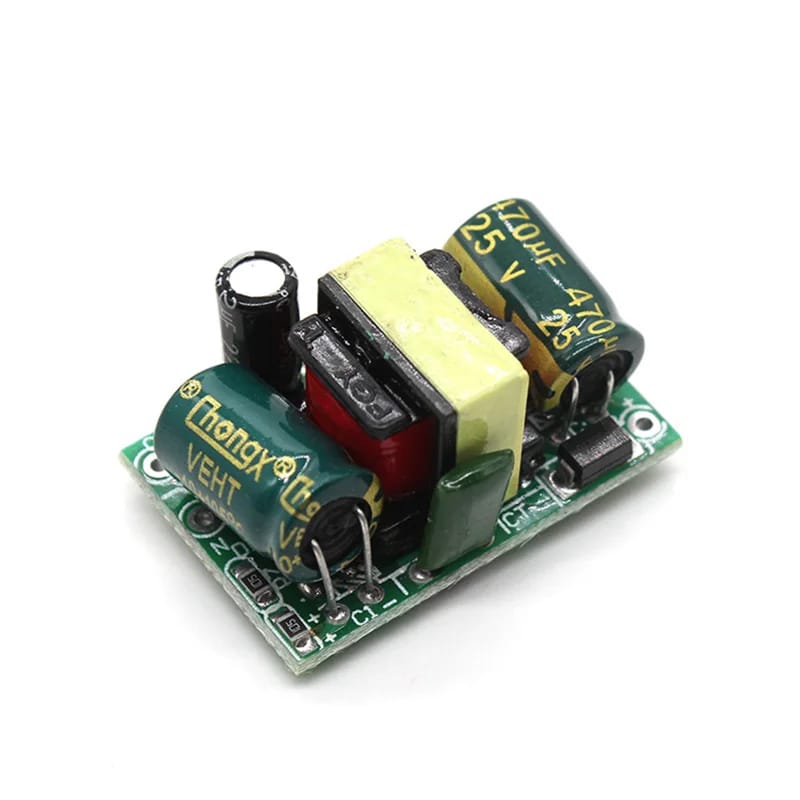

Specifications of 1PCS 12V 400mA AC-DC Isolated Power Buck Converter AC 220V to 12V DC Step Down Module Transformer
