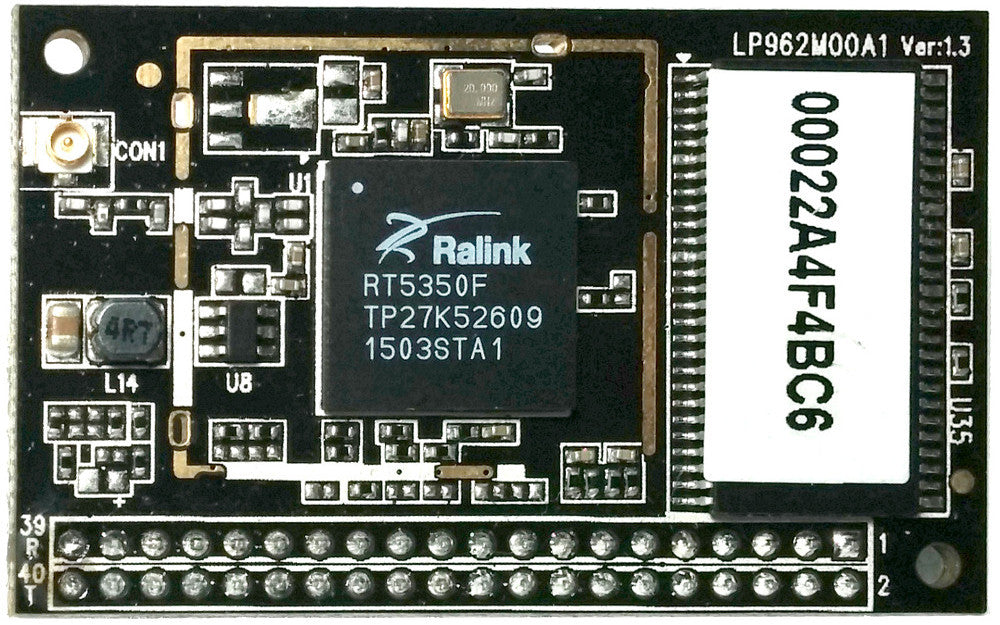

Summary of NixCore X1 specs
Specifications listed for the NixCore X1 include:
- Processor — Ralink RT5350 (1x MIPS-32 core @ 360MHz)
- Memory — 32MB RAM (about 12MB user available); 8MB flash (about 4MB user available)
- Wireless — 802.11n
- Networking — 10/100 Ethernet PHY
-
Other I/O:
- 2x UART
- 24x GPIO
- I2C, I2S, SPI
- JTAG
- Power — 3.3V; 1W consumption
- Operating system — OpenWrt (Linux 3.18) or Windows; TCP/IP/UDP, HTTP, SSL/TLS, Arduino IDE support
Nixcore does not currently list the Nixcore X1 module’s dimensions, but we estimate it to be 30 x 48mm.
