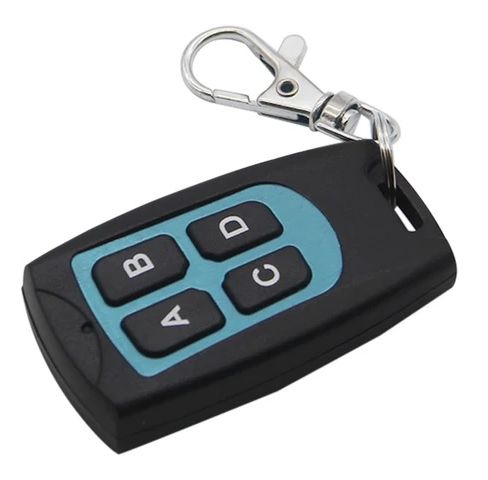

4 Buttons 50M SCT2260 Coding Chip Fixed Code Wireless Remote Control / Transmitter

Product Description:

Model No.: 0021037 (XA-4, fixed code)

Shell Color: Black

Channel/Button: 4

Button Symbol: A, B, C, D

Operating Voltage: 3v can be used for 12 months)

Operating Frequency: 433Mhz

Encoding Chip: SCT2260

Encoding Type: Fixed code by soldering, up to 6561 codes

Transmitting Distance: 50m / 150ft (theoretically)

The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m.

Modulation Mode: ASK

Operating Temperature: -20 ° C to +70 ° C

Unit Size: 55mm x 32mm x 15mm

Weight: 30g
